Puf Insulated Panels

Get a Price/Quote

Puf Insulated Panels Specification

Eco-friendliness
CFC & HCFC Free, environment friendly

Compressive Strength
>0.20 N/mm2 at 10% deformation

Water Absorption
<2% by volume

Surface Finish
Smooth / Corrugated (as per requirement)

Panel Type
PUF (Polyurethane Foam) Insulated Panel

Density of PUF
402 kg/m3

Core Material
Polyurethane Foam (PUF)

Panel Thickness
40mm, 50mm, 60mm, 80mm, 100mm, 120mm, 150mm, 200mm (as per requirement)

Thermal Resistance (R-value)
High thermal resistance ensures minimal heat transfer

Color Options
Customized / Standard colors available

Joint System
Camlock or Tongue & Groove Interlocking

Sheet Thickness
0.35mm to 0.80mm (as required)

Application

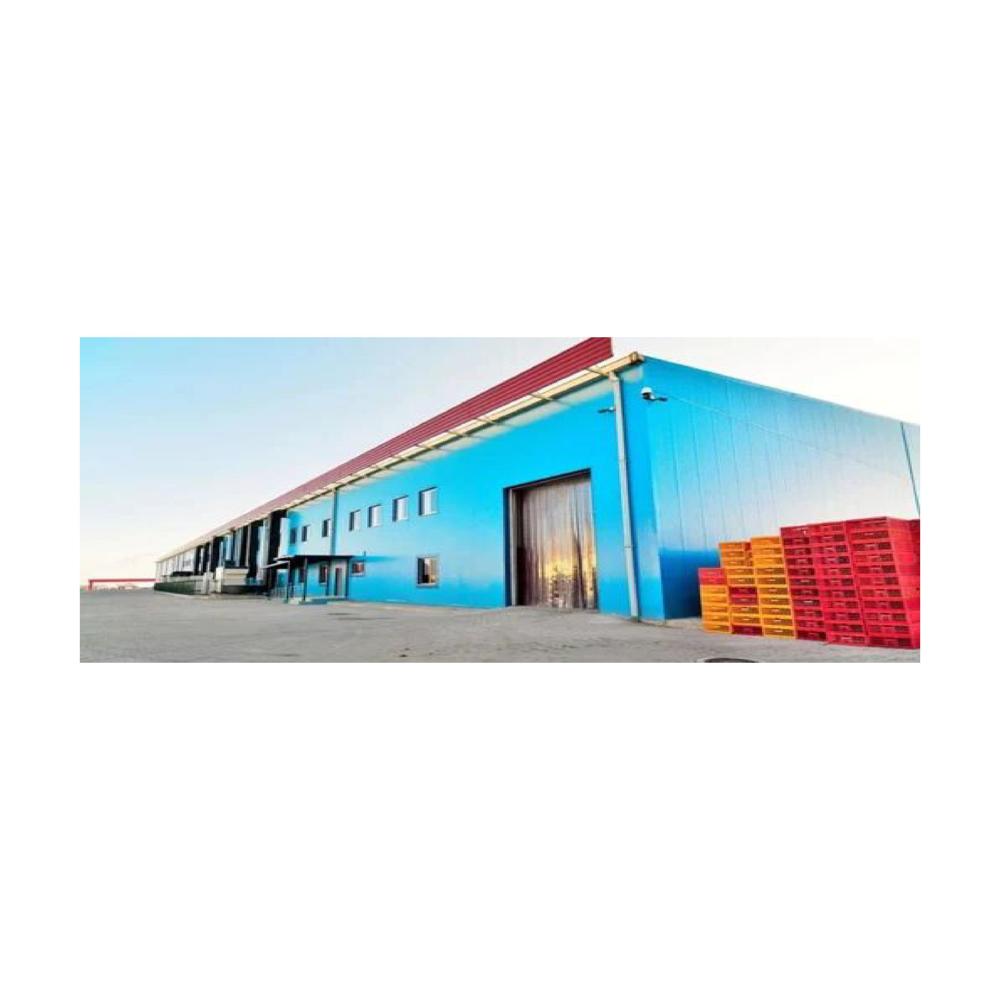

Cold Storage, Clean Rooms, Warehouses, Prefabricated Buildings, Industrial Sheds

Fire Resistance
B2/B3 Class (Self-extinguishing/Fire retardant as per IS)

Length
Customized as per site requirements (up to 12 meters)

Sheet Material
Pre-painted Galvanized Iron (PPGI) / Stainless Steel / Aluminum Sheets

Thermal Conductivity
~0.022 Kcal/m.hrC

Sound Insulation
Good acoustic insulation properties

Standard Width
1000mm to 1200mm

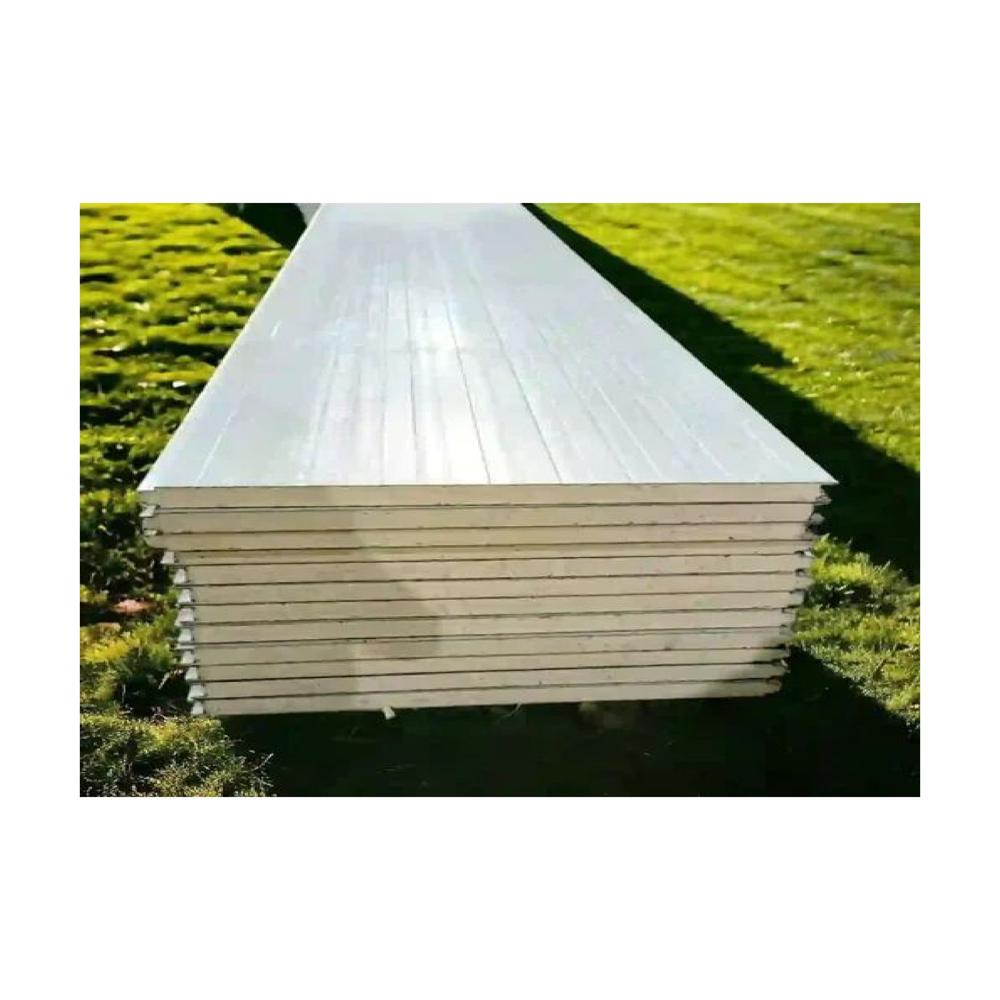

About Puf Insulated Panels

At Benaka Healthcare we offer highquality PUF Polyurethane Foam Insulated Panels designed for industrial commercial and healthcare cold storage applications Our panels provide superior thermal insulation structural strength and energy efficiency making them ideal for cold storage rooms clean rooms fruit ripening chambers and pharmaceutical storage facilities

PUF Insulated Panels are a critical component in maintaining precise temperature control reducing energy consumption and ensuring product quality and safety

Why Choose Benaka PUF Insulated Panels

Superior Thermal Insulation Excellent temperature retention for cold chill or deepfreeze applications

High Structural Strength Durable panels that withstand heavyduty industrial use

EnergyEfficient Reduce cooling loads and operational costs with advanced insulation

Moisture Corrosion Resistance Longlasting performance in humid or challenging environments

Customizable Sizes Thickness Panels tailored to your storage or clean room specifications

Quick Easy Installation Modular design for fast assembly and reduced downtime

Hygienic Safe Compliant with food and pharma storage standards

FireRetardant Options Optional fireresistant panels for added safety

Scalable Solutions Expandable to match growing storage needs

Expert Consultation Guidance on panel selection installation and cold chain integration

Get Started Today

Enhance your storage facilities with Benaka PUF Insulated Panelstrusted for energy efficiency durability and reliable temperature control

Benaka Healthcare Building smarter safer and more efficient cold storage solutions

Superior Thermal and Acoustic Insulation

PUF Insulated Panels are renowned for their high thermal resistance, ensuring minimal heat transfer and excellent energy efficiency in temperature-sensitive environments. The panels also offer impressive sound insulation, making them suitable for noisy industrial settings and residential areas prioritizing peace and comfort.

Robust Construction and Customization

Manufactured using pre-painted galvanized iron, stainless steel, or aluminum sheets, these panels are available with smooth or corrugated surface finishes. With customizable thicknesses from 40mm to 200mm and lengths up to 12 meters, PUF panels can be tailored to fit almost any project, from industrial sheds to prefabricated office spaces.

Eco-Friendly and Fire Retardant

Engineered with CFC and HCFC-free polyurethane foam, the panels support environmental sustainability. The B2/B3 fire resistance class ensures safety, meeting strict IS standards, while the self-extinguishing property enhances protection against fire hazards.

FAQ's of Puf Insulated Panels:

Q: How are PUF Insulated Panels installed on-site?

A: PUF Insulated Panels use camlock or tongue & groove interlocking joint systems, allowing for quick and seamless installation. Panels are custom cut as per site requirements, delivered up to 12 meters in length, and assembled by skilled technicians for a secure, thermal-tight fit.

Q: What are the primary benefits of using PUF Insulated Panels in construction?

A: The key advantages include superior thermal insulation, high compressive strength, minimal water absorption, excellent sound insulation, and fire retardant properties. They also provide energy efficiency, flexibility in sizing, and an eco-friendly composition.

Q: Where are PUF Insulated Panels commonly used?

A: These panels are widely employed in cold storage facilities, clean rooms, warehouses, prefabricated buildings, and industrial sheds across India. Their customizable dimensions make them suitable for diverse commercial and industrial projects.

Q: What core material is used in PUF Insulated Panels, and why is it effective?

A: The panels feature a core of high-density polyurethane foam (PUF) with a density of 402 kg/m3. This material offers outstanding thermal conductivity (~0.022 Kcal/m.hrC), ensuring minimal heat transfer and optimal internal temperature control.

Q: When should different panel thicknesses be chosen?

A: Panel thickness (ranging from 40mm up to 200mm) is selected based on the required thermal performance. Thicker panels are ideal for applications demanding superior insulation, such as cold storage rooms, while thinner panels may suffice for general building envelopes or partition walls.

Q: What process is followed in the manufacturing of these panels?

A: PUF Insulated Panels are manufactured by injecting polyurethane foam between two metal sheets (PPGI, stainless steel, or aluminum), followed by bonding and curing. This process ensures uniform insulation density and robust adhesion, resulting in highly durable panels.
