Modular Operation Theatre Modular Ot

Name: Modular Operation Theatre Modular Ot
Brand: BENAKA HEALTH CARE
Price: 200000.0 INR
Availability: InStock

Price 200000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Modular Operation Theatre Modular Ot Specification

Use
Surgical Procedures, Operations, Sterile Environment Maintenance

Frequency
50/60 Hz

Temperature Range
18C to 28C (programmable)

Suitable For
General Surgery, Cardiac, Orthopaedic, Neurology, and Multi-specialty Hospitals

Display Type
High-resolution LCD/LED Monitor (optional integration)

Automation Grade
Fully Automatic / Semi-Automatic (as per requirement)

Shape
Rectangular (custom shapes available on request)

Product Type
Modular Operation Theatre (Modular OT)

Phase
Single / Three Phase (as required)

Weight
Depends on configuration and dimensions (approx. 800-1500 kg for standard setup)

Accuracy
Environmental control accuracy up to 2C & 5% RH

Storage Capacity
N/A for theatre itself, compatible with modular storage integration

Function
Provides sterile, controlled environment for surgical procedures

Humidity Range
30% to 70% RH (controlled)

Application
Operation Theatre, Hospital, Medical facility, Critical care areas

Color Code
Medical Blue (custom color options available)

Material
High-quality powder-coated metal panels, glass panels, stainless steel option available

Power
220-240V / 380-415V, 50-60Hz

Properties
Hermetically sealed, anti-bacterial, fire-retardant, high durability, easy to clean, sterile environment, smooth surfaces

Height
Standard 2700mm (customizable)

Dimension (L*W*H)
Customizable as per hospital/institution requirements

Treatment Type
Surgical/Operative Procedures

Power Source
Electric

Display
Integrated touchscreen medical display (optional)

Voltage
220V / 415V

Air Filtration
99.997% HEPA filtration, laminar airflow panels

Panel Thickness
50mm to 100mm modular wall panel thickness

Noise Level
Less than 50dB(A)

Data & Communication
Provision for IT/AV integration, nurse call, and video systems

Ceiling Type
Non-porous, jointless ceiling with HEPA filter integration

Internal Finishes
Antimicrobial paint, powder-coated steel panels or glass panels

Fire Resistance
Tested up to 2 hours (as per standard)

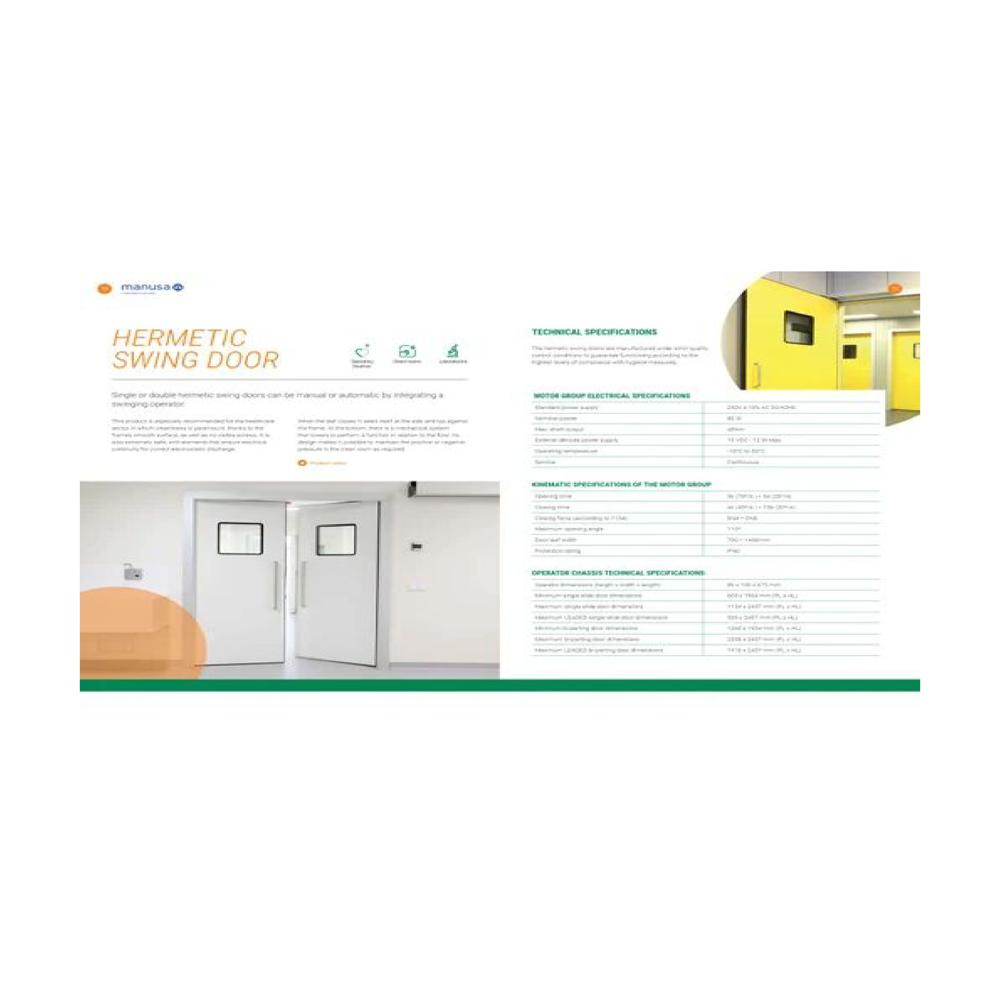

Door Type
Hermetically Sealed Sliding/Swing Automatic Doors

Medical Gas Integration
Custom wall panels for gas outlets and pendant systems

Compliance
ISO 14644, NABH, DIN, NHS, HTM, and other international regulations

Antibacterial Coating
Available on request

Lighting Type
Shadowless LED Operation Theatre Lights (integrated)

Flooring
Seamless conductive or antistatic vinyl / epoxy

Modular Operation Theatre Modular Ot Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Modular Operation Theatre Modular Ot

Benaka Modular Operation Theatre (OT) systems are known for their innovative and high-quality designs tailored for efficient and adaptable surgical environments. While specific features and benefits can vary, here are some general highlights of Benaka Modular Operation Theatre systems:

Features:

Modular Construction: Benaka OTs are built using modular panels and components that can be quickly assembled, disassembled, or reconfigured. This modular approach allows for flexible design and easier upgrades or expansions.
Advanced Infection Control: The theatre is designed with features to enhance infection control, such as seamless surfaces, antimicrobial materials, and effective air filtration systems.
Customizable Layout: The design can be tailored to the specific needs of the hospital or surgical centre, including the arrangement of equipment and workstations to optimize workflow.
Integrated Technology: Equipped with the latest medical technology, including high-definition imaging systems, advanced anesthesia machines, and integrated communication systems for real-time data and video.
Ergonomic Design: The layout and features are designed to enhance the comfort and efficiency of the surgical team, reducing strain and improving accessibility to necessary tools and equipment.
Environmental Control: Includes sophisticated HVAC systems to maintain the required temperature, humidity, and air quality for a sterile environment.
Rapid Deployment: The modular nature allows for faster installation and setup compared to traditional construction, minimizing downtime and disruption.

Benefits:

Flexibility: The modular design allows the OT to adapt to various types of surgeries and medical procedures, as well as the integration of new technologies as they become available.
Efficiency: The efficient design and advanced technology integration improve workflow, which can lead to better surgical outcomes and reduced procedure times.
Cost-Effectiveness: Reduced construction and installation times can lead to cost savings. Additionally, the ability to reconfigure or expand the OT can result in long-term financial benefits.
Enhanced Infection Control: The advanced materials and design features contribute to a sterile environment, reducing the risk of infections and improving patient safety.
Customization: The ability to tailor the design to specific needs means that the OT can be optimized for particular types of surgeries or medical practices.
Reduced Downtime: Faster installation and minimal disruption to existing hospital operations help ensure that the facility remains operational and effective.

Benaka Modular Operation Theatre systems offer a modern, efficient, and flexible solution for surgical environments, making them a valuable choice for hospitals and surgical centres looking to enhance their surgical capabilities and patient care.

Advanced Hygiene and Air Safety

Our modular OTs are designed to meet the highest standards of sterility, equipped with jointless non-porous ceilings and HEPA-filtered laminar airflow panels. This ensures a continuous supply of ultra-clean air and reduces airborne contaminants, ideal for high-risk surgeries. Antimicrobial finishes further reduce infection risks, providing a safe environment for both patients and medical staff.

Intelligent Integration and Customization

From shadowless LED lighting to automation options and cutting-edge IT/AV provisions, every element of the theatre is customizable to your institutional requirements. The flexible wall systems allow for easy integration of medical gas lines, pendant systems, and modular storage. Adjustable environmental controls achieve precise temperature and humidity, creating a comfortable operating environment.

Durability, Compliance, and Safety

Our OTs use robust materials such as powder-coated metal, glass, or stainless steel, ensuring a long lifespan and resistance to chemicals and fire. With panel thickness options from 50mm to 100mm and noise levels below 50dB(A), they offer safety, compliance, and comfort. Every OT is built according to global standards including ISO 14644, NABH, DIN, and NHS.

FAQ's of Modular Operation Theatre Modular Ot:

Q: How does the modular operation theatre ensure a sterile environment?

A: The theatre maintains sterility through a combination of hermetically sealed doors, non-porous jointless ceiling, and 99.997% HEPA filtration with laminar airflow, drastically reducing airborne contaminants and cross-infection risks.

Q: What configurations and dimensions are available for these modular OTs?

A: Our OTs are fully customizable regarding dimensions (length, width, height) and can be tailored to meet hospital or institutional requirements. Standard heights start at 2700mm, with weight and shape adaptable to your facility's layout.

Q: When should antibacterial coatings or advanced finishes be opted for?

A: Antibacterial coatings and advanced finishes are recommended for areas with higher infection risk or when enhanced hygiene is required. These can be included upon request to further promote sterility and safety within the operating area.

Q: Where can these modular operation theatres be installed?

A: They are suitable for a variety of healthcare settings, including general, cardiac, orthopedic, neurology, and multi-specialty hospitals, as well as critical care and surgical units where stringent infection control is necessary.

Q: What is the process for integrating medical gas, IT, and AV systems?

A: Wall panels are designed to seamlessly accommodate custom gas outlets, medical pendants, nurse call systems, and integrated IT/AV infrastructure during the OT installation, ensuring efficient workflow and communication.

Q: How does the modular OT support energy efficiency and noise reduction?

A: With high-quality materials, less than 50dB(A) noise levels, and energy-efficient LED lighting, the OT minimizes operational disruptions and lowers overall energy consumption, benefiting both staff and patients.

Q: What are the compliance standards met by these modular OTs?

A: The modular operation theatres conform to leading regulatory frameworks, including ISO 14644 for cleanrooms, NABH, DIN, NHS, HTM, and other international standards, ensuring legal and functional excellence in any region.
